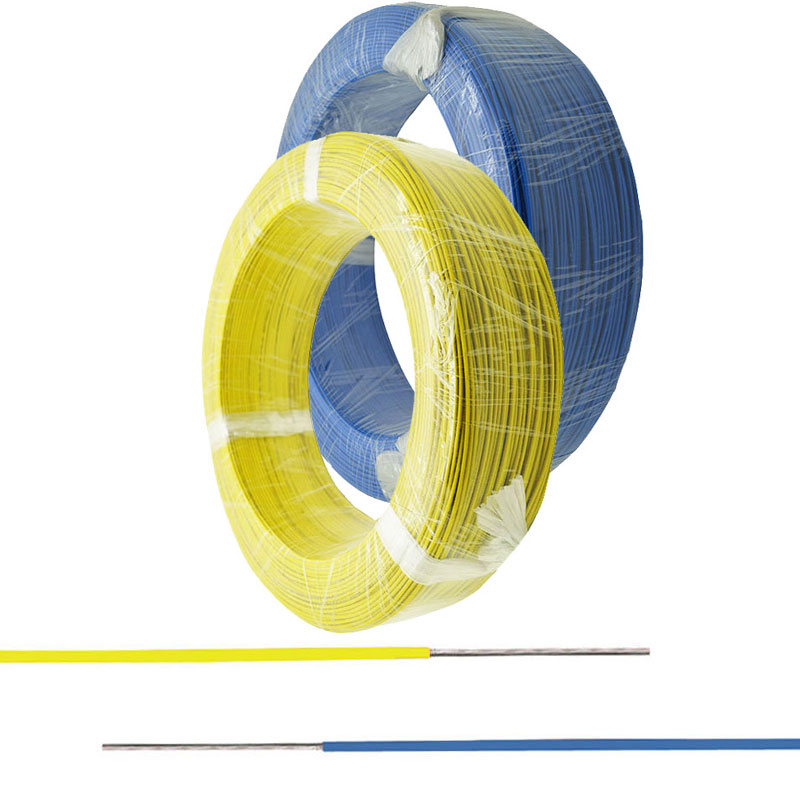

18 20 22AWG High Temperature Resistance ETFE Tefzel Insulated Wire
Applications:
1. suitable for wiring in electronic equipment which has a tendency to build up and retain heat, and in environments where they will be exposed to oil or chemicals, such as in chemical plants or for application in industrial robots.
2. For aerospace, weapons, ships and electronic industry and other instrument wire connection.
3. Lead wires of small coils and relays, etc.
4. Wiring for movable components subject to bending or flexure
Properties of ETFE Wire
Operating Temperature: -65℃ ~ +150℃
Voltage Rating: AC 600V and below
Insulated Material: ETFE Insulated
Conductor Material: Tinned or Silver Plated copper
Conductor Type: Solid or Stranded
Core Number: Single Core or Multicores
Insulation Resistance(20℃): ≥100MΩ.km
Available Colors: White, Yellow, Red, Violet, Green, Brown, Grey, Blue, Orange, Black...
Cross-section area
(mm²) | Conductor
(mm) | Reference outerdiameter
(mm) | Reference weight
kg/km | Max.DC resistance at 20℃
(Ω/Km) |
| FF40-1 | FF40-1 |
| 0.14 | 19/0.1 | 1.02 | 2.66 | 136.0 |
| 0.2 | 19/0.12 | 1.14 | 3.82 | 90.4 |
| 0.4/0.3 | 19/0.16 | 1.32 | 5.48 | 53.1 |
| 0.6/0.5 | 19/0.2 | 1.52 | 7.98 | 32.4 |
| 0.75 | 19/0.23 | 1.70 | 9.99 | 24.6 |
| 1.0 | 19/0.26 | 1.80 | 11.70 | 20.4 |
| 1.2 | 19/0.28 | 2.01 | 14.80 | 16.6 |
| 1.5 | 19/0.32 | 2.25 | 18.20 | 12.7 |
| 2.0 | 19/0.36 | 2.36 | 22.20 | 10.0 |
| 2.5 | 37/0.3 | 2.78 | 30.40 | 7.43 |
| 3.0 | 37/0.32 | 2.90 | 33.60 | 6.63 |
| 4.0 | 37/0.37 | 3.38 | 45.40 | 4.88 |
| 5.0 | 37/0.4 | 3.53 | 52.20 | 4.13 |
| 6.0 | 37/0.45 | 4.05 | 65.60 | 3.30 |
RFQ:
1).Q:Are you a manufacturer or trading company?
A:We are a professional manufacturer,research,development and sales of military and consumer cable wire and cable compound.The company is located in Hunan Province,China
2).Q:What is your company's strengths?
A:We are a stable wire and cable supplier of China's aerospace and military,21 years experience,cable compounds produced by ourselves,This is how we keep superior quality and competitive offers for global valued customers.
3).Q:How do you guarantee your product quality?
A:Quality is our priority,we treat quality control as the first most important thing from the very beginning to the very end.In design,materials procurement,manufacturing semi-finished products testing,finished product inspection such as strick control to ensure product quality.
4).Q:What's the warranty of your products?
A:We provide 1 year complete warranty service,If the products have quality problems,We plant to replace or return unconditionally.
5).Q:How can I get the samples?
A: We can make the sample order for you. And if the sample qty is small and available in our stock, we can provide you by free, but the freight should be absorbed by your side.
Product Tags:
|
|

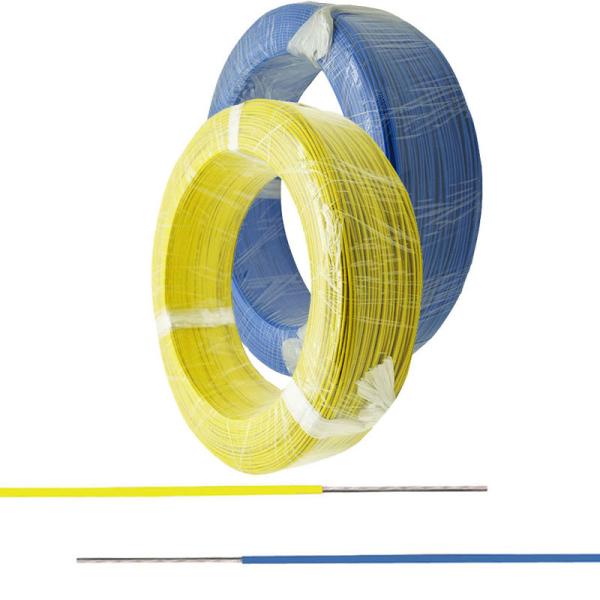

High Temperature Resistance ETFE Tefzel Insulated Wire 18 20 22AWG Images
|
